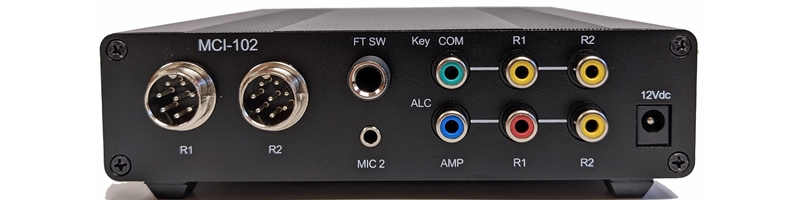

So what exactly is an MCI-102?
Lets say, you have an expensive microphone you would like to use on two different radios, and suppose one radio is a Yaesu and the other is an ICOM. Or perhaps, you want to use the same foot switch to KEY your radio… or maybe you would like to interface an XLR microphone to your radio…. well, the MCI-102 can do all these functions… and more..
Package Contents Includes
- MCI-102 Unit (1)
- 3.5mm to XLR adapter cable (1)
- Female to Female GX16-8 (Foster) Cable (1)
- 12Vdc power adapter (1)
MCI Feature List:
- Microphone Routing: M1 to Radio 1 or Radio 2 (R1/R2)
- Boom Microphone Input, 3.5mm TRS (Powered via Selected Radio)
- Foot Switch Input, 1/4″ TS
- Switchable External Amp Keying
- ALC Routing or Remote antenna switch control
- Compatible with ICOM/Kenwood/Yaesu/Alinco (Internal Jumper Configuration)
- Cross Radio Compatible (ICOM Mic/Kenwood Radio, etc)
- Full Function MIC 1 to Radio 1 Only
- DPDT Control Switch (SPDT PTT Control, SPDT External R1/R2 Control)
- PTT Switchable Load (High Voltage Open Collector)
- Single switch changes inputs to selected radio
- KEY Enable switch allows operation with or without connected external Amplifer Â
